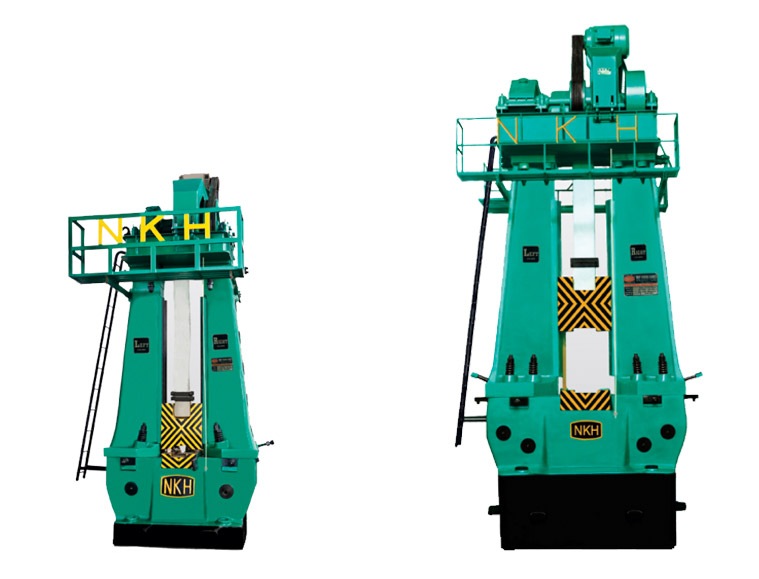

FORGING DROP HAMMERS / BELT DROP HAMMERS





Capacity 500 Kgs to 5000 Kgs.

  Technical Specifications
  NKH Self Contained Friction Drop Hammer is being manufactured in different capacities. NKH Friction Hammers have been designed and developed with Indian know-how and material. Prospective customers are welcome to conduct trials and inspect our range of NKH Hammers at our works in Ludhiana.


  Size of Hammer (Wt.of Tup
including)
Kgs.
Lbs.
500
1120
750
1653
1000
2204
1500
3306
2000
4408
2500
5510
3000
6212
4000
8816
5000
11020
1.    Space between Slides
mm.
ln.
431
17
482
19
558
22
635
25
712
28
751
29½
751
29½
787
31
863
34
2.
Maximum Stroke
mm.
Ft.ln.
1550
5'0"
1631
5'3"
1601
5'2"
1546
5'0"
1476
4'8"
1980
6'5"
1905
6'2"
2036
6'6"
2086
6'8"
3.
Tup (Front to Back)
mm.
ln.
368
14½
410
16
450
17
597
23½
610
24
660
26
660
26
914
36
950
37
4.
Total Height of Machine
mm.
Ft.ln.
5260
17-3
5740
18-10
6000
19-8
6450
21-2
6790
23-3
6865
22-6
7390
24-3
8839
29
9754
32 Ft.
5.
Max. Wt.of the top die
Kgs.
Lbs.
150
330
225
500
300
660
450
992
600
1322
750
1653
900
1984
1200
2645

1500
3306
6.
Max. No. of Blows per  minute
Short Stroke

Full Stroke
175

125
145

104
127

90
98

70

98

70
60

43
60

43
53

38
42

30
7.
Approximate Gross Weight
M.Tons
20-22
27
32
50
62
72
82
102
122
8.
Electric Motor
H.P.
30
40
50
75
100
125
150
200
250
9.
Motor Rating
50 Cycles 440 volts 3phase 1440 R.P.M SQDP
